IHF型氟塑料化工離心泵 |
|

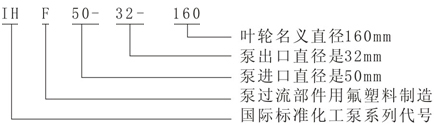

型號意義
 性能參數 | 型號規格 | 口徑
(mm) | 轉速 n=2900r/min | | 進口 | 出口 | 流量
(m3/h) | 揚程
(m) | 電機功率
(kw) | 汽蝕余量
(m) | 效率
(%) | | IHF40-25-125 | 40 | 25 | 6.3 | 20 | 1.5 | 3 | 41 | | IHF40-25-160 | 40 | 25 | 6.3 | 32 | 2.2 | 3 | 36 | | IHF40-25-200 | 40 | 25 | 6.3 | 50 | 4 | 3 | 30 | | IHF40-32-250 | 40 | 32 | 6.3 | 80 | 11 | 4 | 62 | | IHF50-32-125 | 50 | 32 | 12.5 | 20 | 2.2 | 3 | 51 | | IHF50-32-160 | 50 | 32 | 12.5 | 32 | 4 | 3 | 46 | | IHF50-32-200 | 50 | 32 | 12.5 | 50 | 7.5 | 3 | 39 | | IHF65-50-125 | 65 | 50 | 25 | 20 | 3 | 3.5 | 62 | | IHF65-50-160 | 65 | 50 | 25 | 32 | 5.5 | 3.5 | 57 | | IHF65-40-200 | 65 | 40 | 25 | 50 | 11 | 3.5 | 52 | | IHF65-50-250 | 65 | 50 | 25 | 80 | 18.5 | 4 | 69 | | IHF80-65-125 | 80 | 65 | 50 | 20 | 5.5 | 4 | 69 | | IHF80-65-160 | 80 | 65 | 50 | 32 | 11 | 4 | 67 | | IHF80-50-200 | 80 | 50 | 50 | 50 | 15 | 4 | 63 | | IHF80-50-250 | 80 | 50 | 50 | 80 | 30 | 4.5 | 57 | | IHF100-80-125 | 100 | 80 | 100 | 20 | 11 | 4.5 | 66 | | IHF100-80-160 | 100 | 80 | 100 | 32 | 15 | 5 | 73 | | IHF100-65-200 | 100 | 65 | 100 | 50 | 30 | 5 | 73 | | IHF100-65-250 | 100 | 65 | 100 | 80 | 45 | 5 | 70 | | IHF125-80-160 | 125 | 80 | 160 | 32 | 30 | 5 | 70 | | IHF125-100-200 | 125 | 100 | 200 | 50 | 55 | 5 | 65 | | IHF125-100-250 | 125 | 100 | 100 | 20 | 15(4級) | 5.5 | 70 | | IHF125-100-250 | 125 | 100 | 200 | 80 | 75 | 5 | 65 | | IHF125-100-315 | 125 | 100 | 100 | 32 | 18.5(4級) | 7 | 67 | | IHF150-125-250 | 150 | 125 | 200 | 20 | 22(4級) | 7 | 65 | | IHF150-125-315 | 150 | 125 | 200 | 32 | 45(4級) | 7 | 61 | | IHF150-125-400 | 150 | 125 | 200 | 50 | 75(4級) | 7 | 69 |
|
|
| |
|
